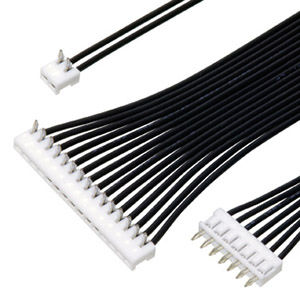

JC Connector

    • Two types terminals, angle and straight, are available.
    • Housing is common use for both angle and straight.
    Pitch (mm) 2.5
    Mounting Style DIP
    Poles Single:2~15P
    Wire Size AWG #22~ #30

    Product Catalog

    Specifications



    Poles 2~15P
    Pitch 2.5mm
    Rated Voltage AC.DC 250V
    Rated Current 3A
    Withstand Voltage AC1000V/1min
    Insulation Resistance 1000MΩover
    Temperature Range -20~+85℃
    Applicable P.C.B. Thickness 1.2~1.6mm
    Applicable P.C.B. Hole dia. 1.2mm(Both sides 1.0mm)
    Wire Size AWG#22~#30

    Terminal/Applicator

    Terminal No. Wire Size Dia of Insulation Applicator
    for Crimping Machine for Strip Crimper
    510430-2MA #22 ~ #30 0.88 ~ 1.8mm JC-2300 SCA-18500
    510430-2MAC #22 ~ #30 0.88 ~ 1.8mm JC-2300 SCA-18500
    510420-2MA #22 ~ #30 0.88 ~ 1.8mm JC-2200 SCA-18600
    510420-2MAB #22 ~ #30 0.88 ~ 1.8mm JC-2200 SCA-18600
    510420-2MAC #22 ~ #30 0.88 ~ 1.8mm JC-2200 SCA-18600

    Refer to the catalog or specification sheet for the terminal’s detail.
