Circular Workpiece Clamp Toolings
MC65A-Y

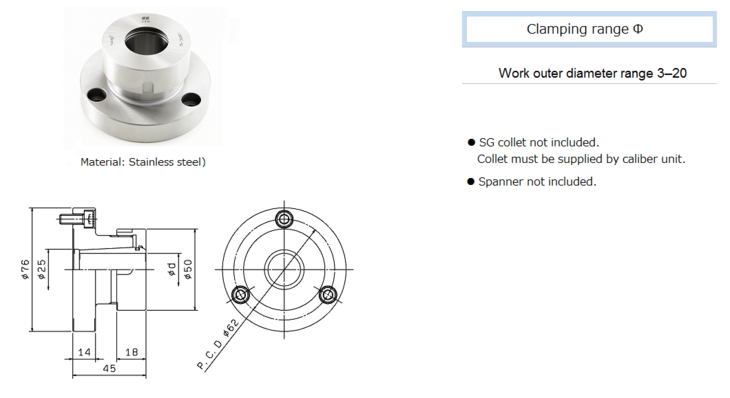

- J.A.M. original G1 chuck specialized for SG colle

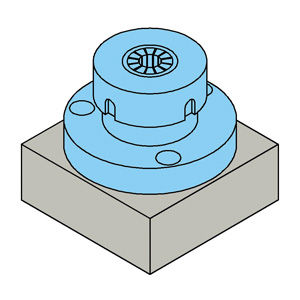

- Block serving as the base when attaching the optional chuck.
- Size is square with 80mm sides, with all surfaces given a polished finish.
- Use possible even with 90° partitioning.
-
Use with the J.A.M. precision sine vise is the key to simplified circular workpiece angle processing.
| Outer Range | 20 |
|---|

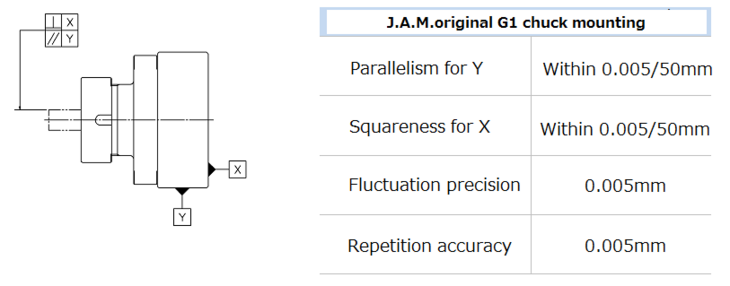

J.A.M.original G1 chuck mounting precision
