Precision Rotary Chuck / JAM original G1 Chuck

Circular Workpiece Clamp Toolings

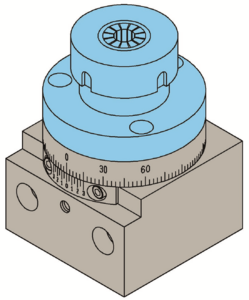

BC65A-Y

    • J.A.M. original G1 chuck specialized for SG collet
    • Setup time is reduced with use of a simple indexing function.
    • Adoption of a special ball lock mechanism ensures high lockrepetition accuracy for precision positioning.
    • Hand-turned chuck structure.
    Outer Range 20

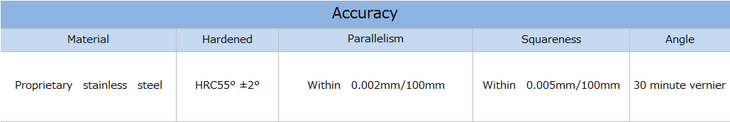

    Specifications

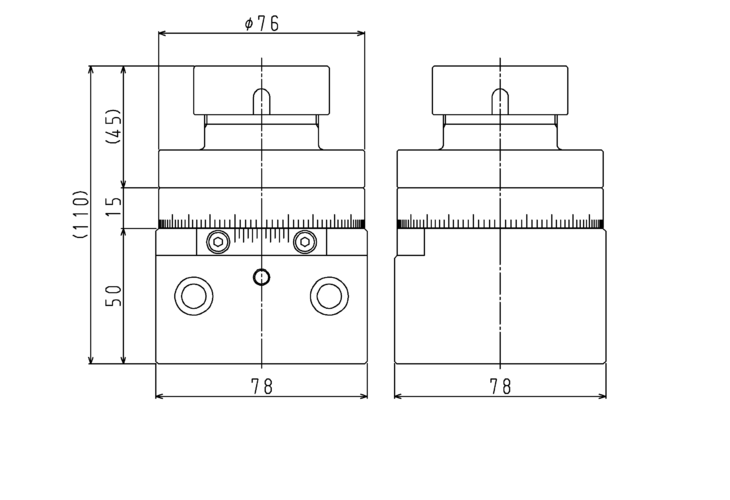

    Dimensions

    Associated Info

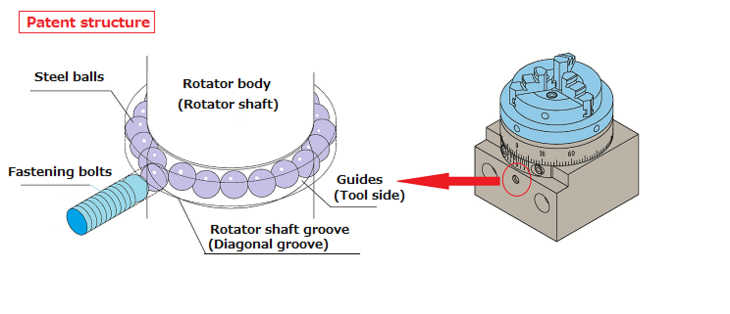

    Ball lock chuck system structure

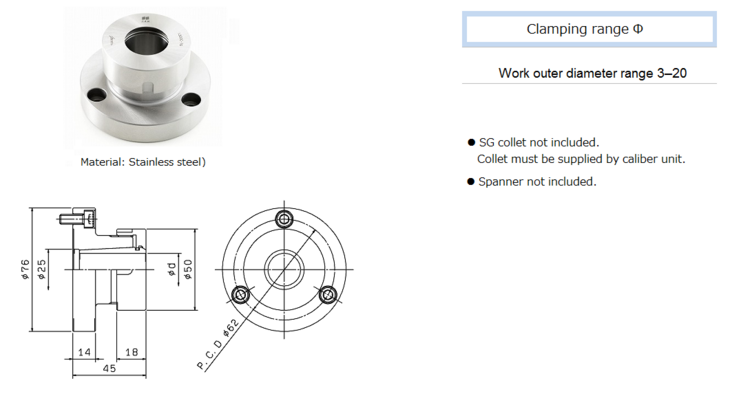

    J.A.M. original G1 chuck specialized for SG collet

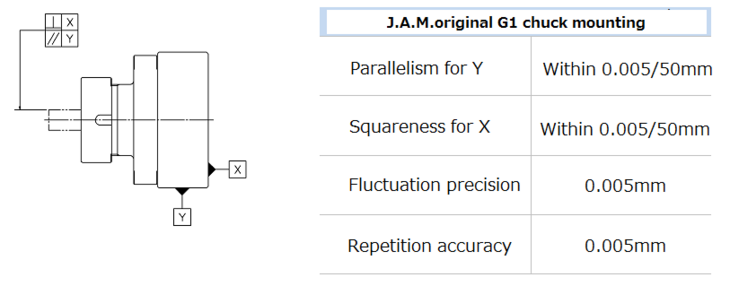

    J.A.M.original G1 chuck mounting precision
