Precision Vises

精密バイス

Precision Rotary Chuck / Lever Chuck

Circular Workpiece Clamp Toolings

BC65A-V

    • Lever chucks
    • Setup time is reduced with use of a simple indexing function.
    • Adoption of a special ball lock mechanism ensures high lockrepetition accuracy for precision positioning.
    • Hand-turned chuck structure.
    • BC65A-V   3.0kg
    Outer Range 36
    Inner Range 50

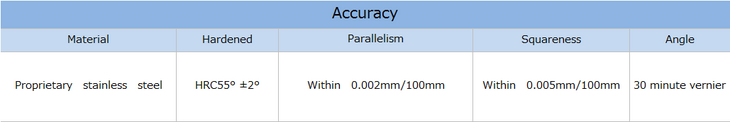

    Specifications

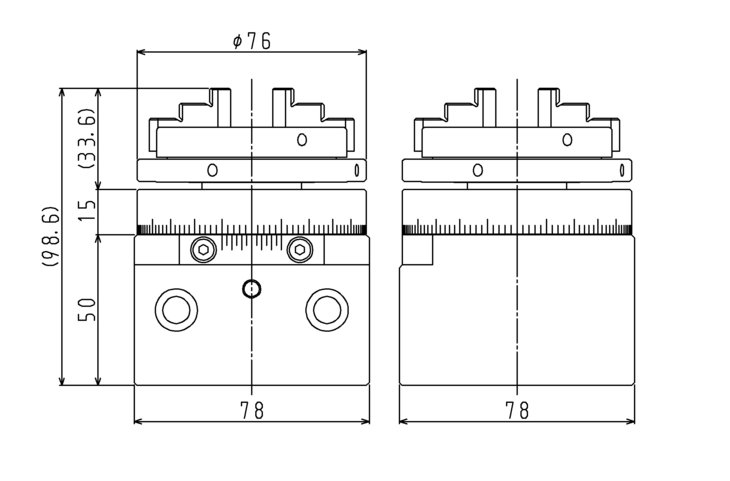

    Dimensions

    Associated Info

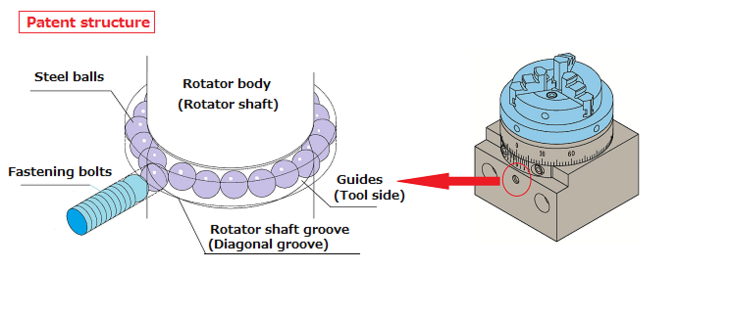

    Ball lock chuck system structure

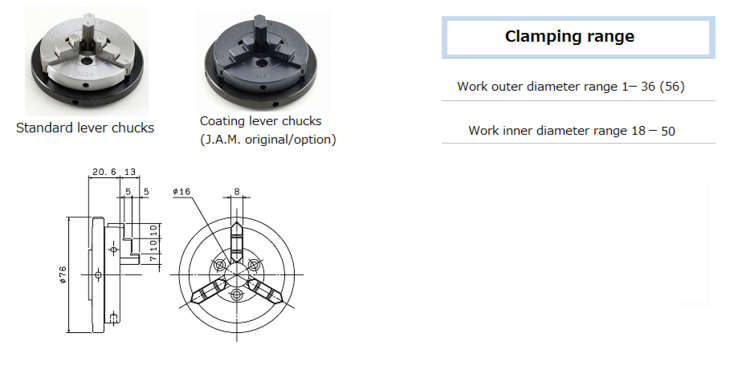

    Lever chucks

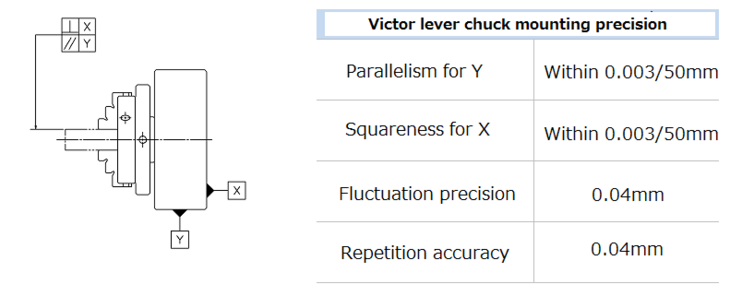

    Setup precision
